PN100 and ASME Class 600
100 bar g @ 50°C
450°C 58.3 bar g
-50°C
46 bar g
450°C @ 46 bar g
Maximum operating backpressure is 80% of the upstream pressure

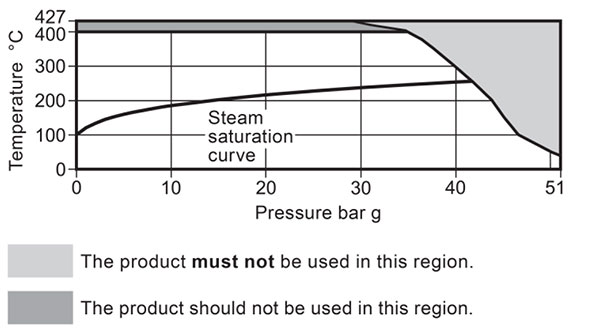

Pressure / Temperature limits
Performance testing per ANSI/ASME PTC-39.1.
End connections per ANSI B1.20.1 for threaded ends, per ANSI B16.11 for socket welding ends.
THERMODYNAMIC DISC TRAP WITH THERMOSTATIC AIR VENT
